Specifications

PRICING

Price	Standard
Price - Warranty (Months)	12
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	34.7
Engine - Torque (Nm)	47
Engine - Torque RPM	2500
Engine - Cooling	Liquid
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV
Engine - Bore (mm)	76
Engine - Bore (in)	2.99
Engine - Stroke (mm)	68
Engine - Stroke (in)	2.68
Engine - Displacement (cc)	617
Engine - Displacement (ci)	37.6
Engine - Compression Ratio	10.3:1
Engine - Starter	Electric
Engine - Fuel Requirements	Regular
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Carburetion Brand	Mikuni
Carburetion - Fuel Injector	No
Carburetion - Carburetor	Yes
Carburetion - Number Of Carburetors	1
Carburetion - Carburetion Type	Carburetor
Parental Controls	Standard
Parental Controls - Speed Governor	Yes
Snorkel Air Intake	Standard

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Continuously Variable (CVT)
Transmission - Primary Drive (Rear Wheel)	Shaft
Transmission - Primary Drive (Engine / Transmission)	Belt
Transmission - Reverse	Yes
Transmission - Hi / Low Range	Yes
Transmission - Primary Drive (Front Wheel)	Shaft

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	112.6
Dimensions - Length (mm)	2860
Dimensions - Width (in)	57.5
Dimensions - Width (mm)	1460.5
Dimensions - Height (in)	76.2
Dimensions - Height (mm)	1935.5
Dimensions - Wheelbase (in)	73.6
Dimensions - Wheelbase (mm)	1869.4
Dimensions - Turning Radius (ft)	11.2
Dimensions - Ground Clearance (in)	7.2
Dimensions - Ground Clearance (mm)	182.9
Dimensions - Front Tread Width (in)	45.7
Dimensions - Front Tread Width (mm)	1160.8
Dimensions - Rear Tread Width (in)	46.5
Dimensions - Rear Tread Width (mm)	1181.1
Dimensions - Length (ft)	9.38
Dimensions - Length (ft/ft)	9
Dimensions - Length (ft/in)	4.6
Weight	Standard
Weight - Dry Weight (lbs)	1314
Weight - Dry Weight (kg)	596
Weight - Payload Capacity (lbs)	1330
Weight - Payload Capacity (kgs)	603.3
Weight - Towing Capacity (lbs)	1200
Weight - Towing Capacity (kgs)	544.3
Capacities	Standard
Capacities - Fuel Capacity (gal)	5.3
Capacities - Fuel Capacity (l)	20.1
Performance	Standard
Performance - Engine Displacement to Weight (cc)	0.47

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Construction - Body Material	Plastic
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Brush Guard	Yes
Exterior Guards - Radiator Guard	Yes
Exterior Guards - Front Mud Guards	Yes
Exterior Guards - Rear Mud Guards	Yes
Front Bumper	Standard
Front Fender Flairs	Standard
Rear Fender Flairs	Standard
Skid Plate	Standard
Skid Plate - Bash Plate (Front)	Yes
Cab Cage	Standard
Cab Rollbar	Standard
Cab / Bed Divider	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	McPherson Strut
Front Suspension - Front Travel (in)	3.9
Front Suspension - Front Travel (mm)	99.1
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	De Dion Semi Independent
Rear Suspension - Rear Travel (in)	2.8
Rear Suspension - Rear Travel (mm)	71.1
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Tube / Tubeless	Tubeless
Wheels - Front Tire Diameter (in)	23
Wheels - Rear Tire Diameter (in)	23
Tires	Standard
Tires - Front Tire Width	11
Tires - Front Wheel Diameter	10
Tires - Rear Tire Width	11
Tires - Rear Wheel Diameter	10
Tires - Front Tire (Full Spec)	23 X 11-10
Tires - Rear Tire (Full Spec)	23 X 11-10

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Sealed Hydraulic Drum
Brakes - Rear Brake Type	Sealed Hydraulic Drum

SEATS

Seat	Standard
Seat - Seat Type	Bench
Seat - Seat Material	Vinyl
Seat - Folding	Yes
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	35.2
Seat Specifications - Seat Height (mm)	893
Seat Specifications - Number Of Seats	2
Seat Specifications - Number Of Rows	1
Grab Rail or Strap	Standard

INSTRUMENTATION

Oil Pressure Gauge	Standard

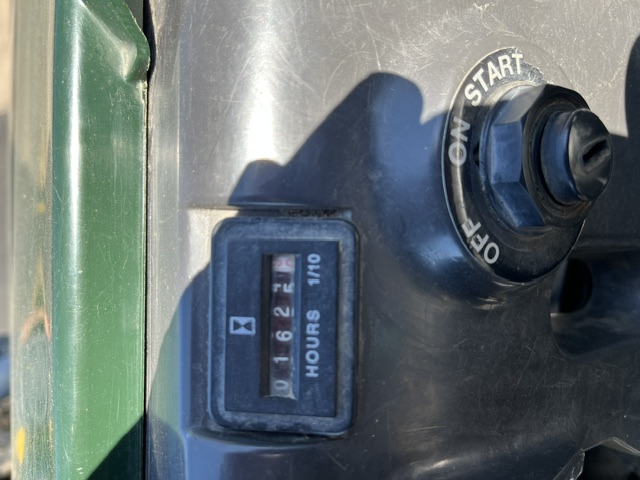

Hour Meter	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge

STORAGE

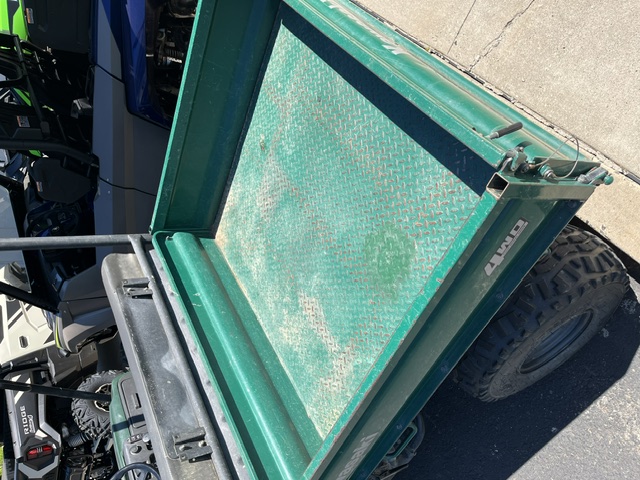

Cargo Bed	Standard
Cargo Bed - Bed Length (in)	46.3
Cargo Bed - Bed Length (mm)	1176
Cargo Bed - Bed Height (in)	11.3
Cargo Bed - Bed Height (mm)	287
Cargo Bed - Bed Width (in)	51.6
Cargo Bed - Bed Width (mm)	1310.6
Cargo Bed - Bed Capacity (lbs.)	803
Cargo Bed - Bed Capacity (kgs.)	364.2
Cargo Bed - Cargo Bed Tilt	Yes
Cargo Bed - Cargo Bed Material	Steel
Cargo Bed - Bed Volume (ft3)	15.6
Cargo Bed - Bed Volume (m3)	0.44
Cargo Bed - Integral Tie-Down Hooks	Yes
Glove Box / Dash Storage	Standard
Front Storage Well	Standard

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

CONVENIENCE

Power Outlet	Standard
Seat Belts	Standard

PAINT & FINISH

Paint	Standard
Paint - Metallic	No

DRIVE LINE

Driveline	Standard
Driveline - Driveline Type	Selectable 4X2 / 4X4
Driveline - Number Of Driveline Modes	2
Driveline - Rear Unlocking Differential	Yes
Limited Slip Differential	Standard
Limited Slip Differential - Limited Slip Differential Location	Front
Differential Lock	Standard
Differential Lock - Differential Lock Location	Rear

STEERING

Steering	Standard
Steering - Steering Type	Rack & Pinion
Steering - Steering Control	Steering Wheel

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
